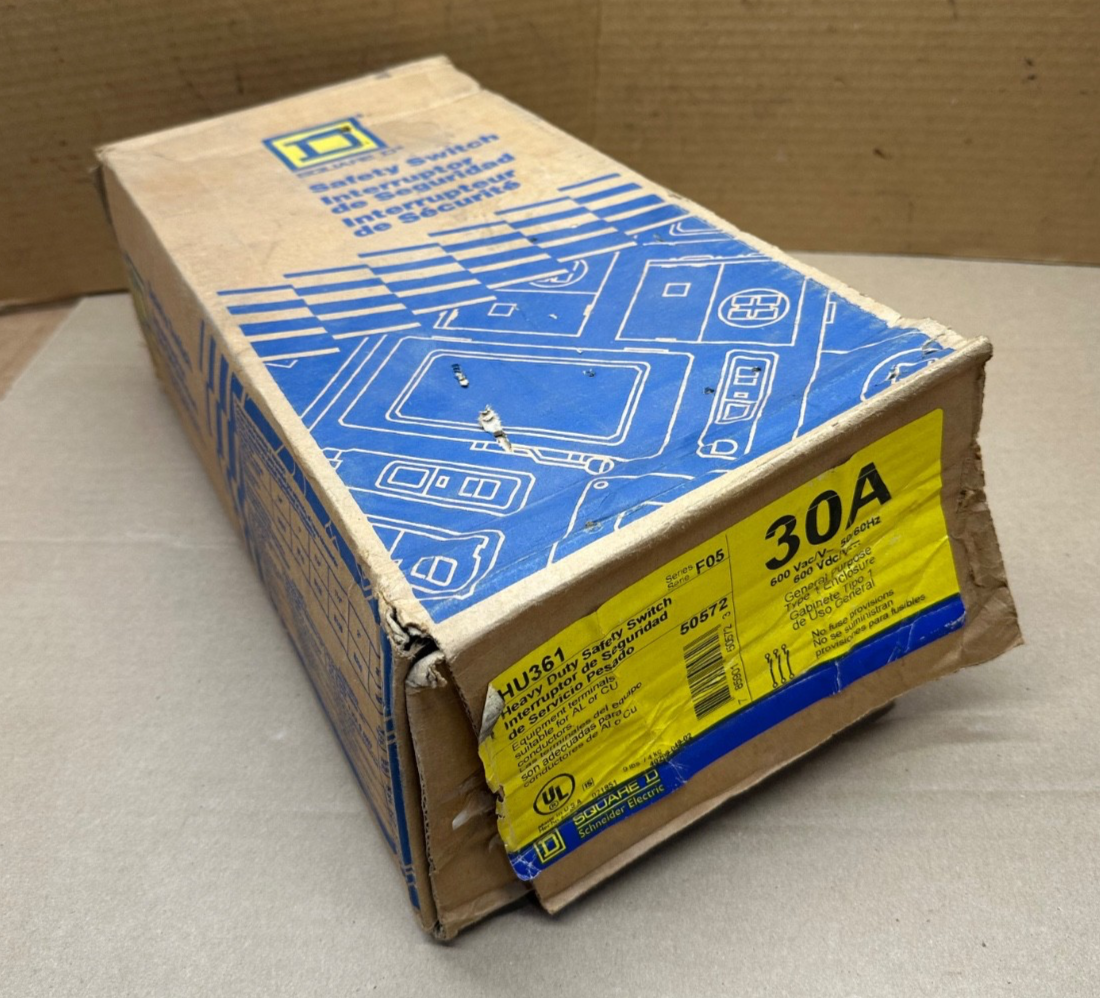

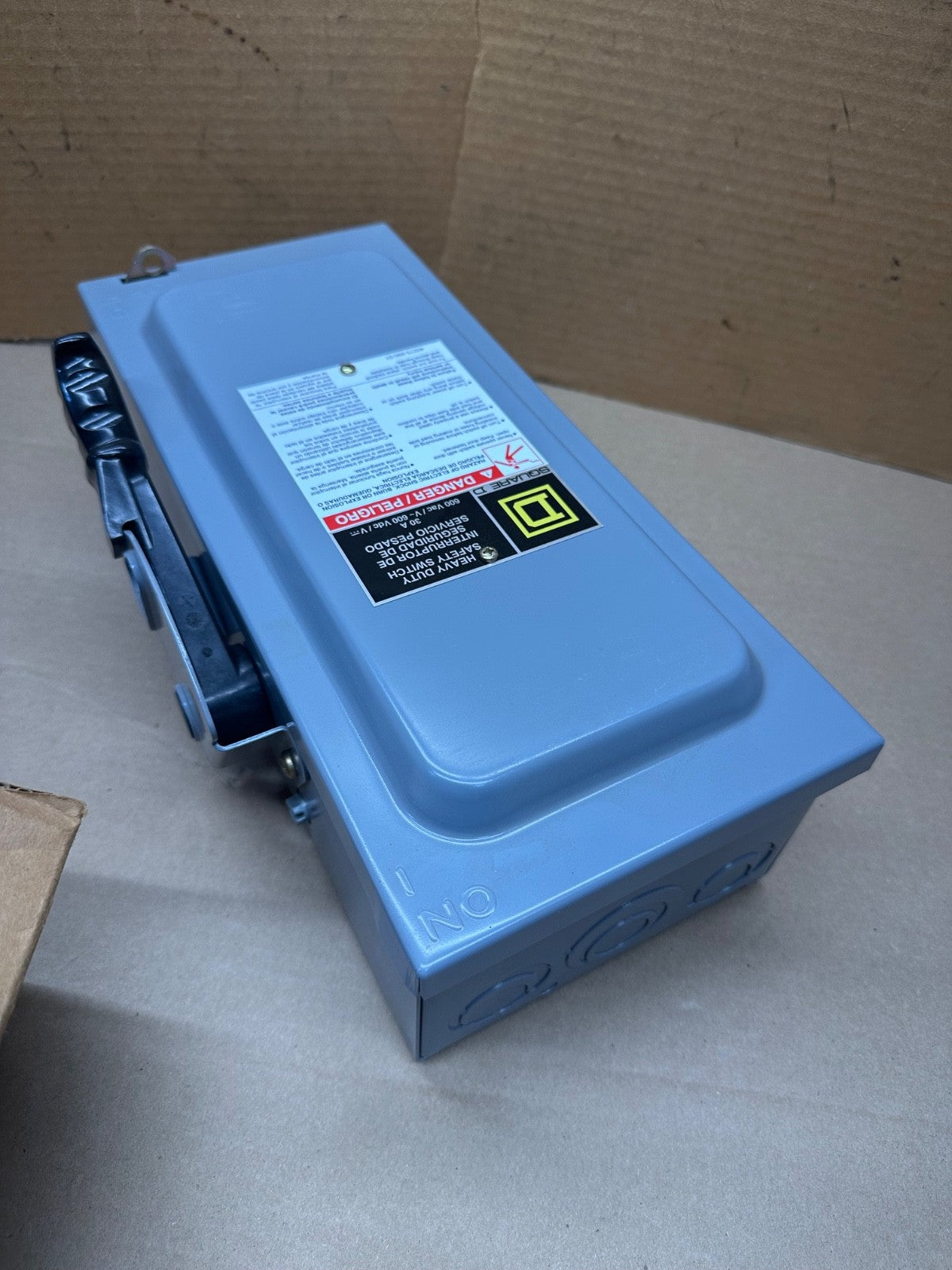

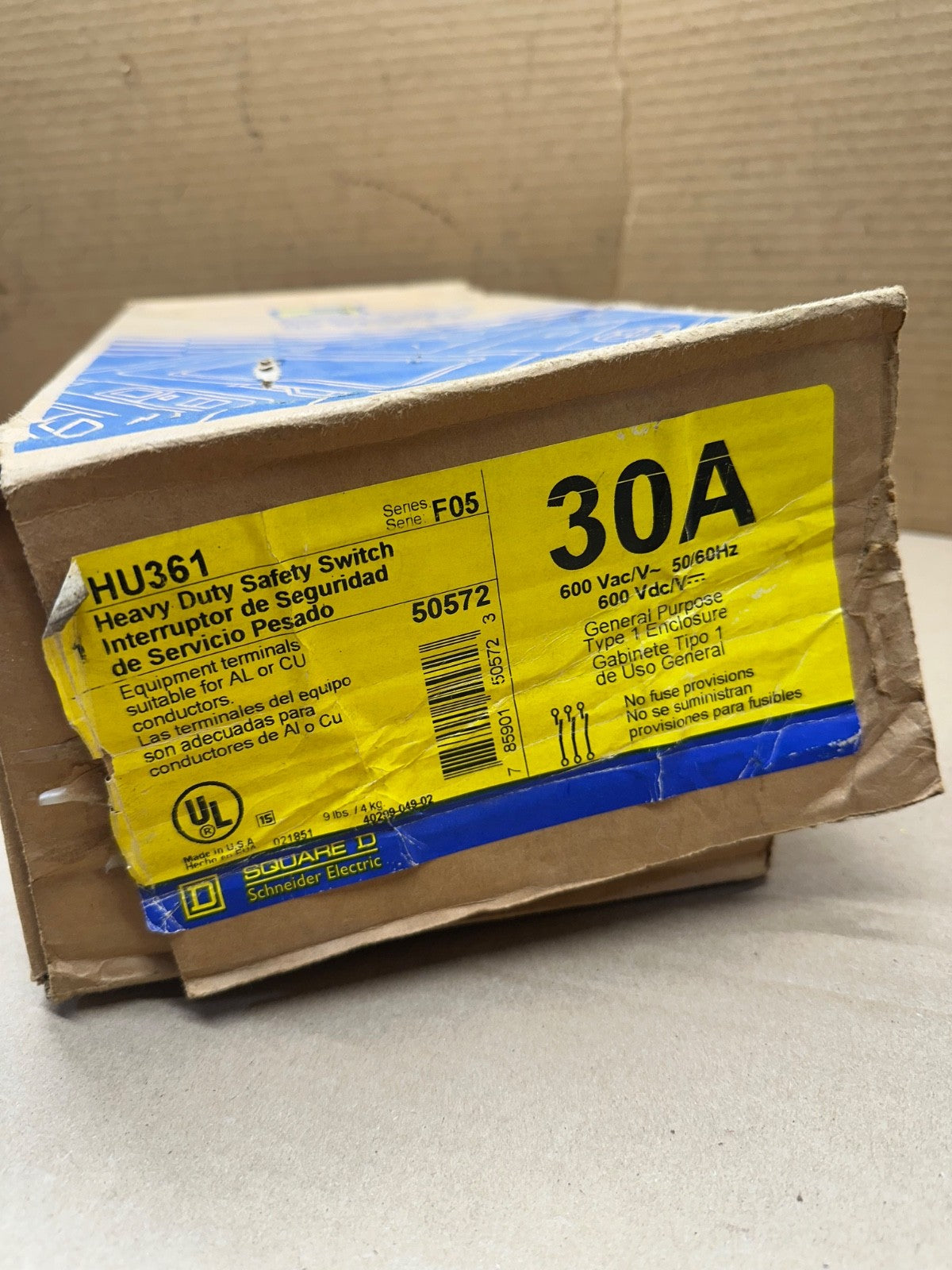

Square D HU361 Heavy Duty Safety Switch 30A 600V 3-Pole Non-Fusible NEMA 1 f05

Mounting Style: Surface

Color: Gray

Current Rating: 16-30 A

Fuse Type: Switch

Material: Metal

MPN: HU361

Switch Style: Toggle/Joystick

Smart Home Compatibility: Universal

Suitable For: Interior

Brand: Square D

Number in Pack: 1

Coil Voltage: 600V

Model: HU361

Country/Region of Manufacture: United States

Finish: Stainless Steel

Application: Commercial

New open box

Product Single Throw Safety Switch

Duty Rating Heavy duty

Device Application Heavy application

Disconnect Type Non-fusible disconnect

Factory Installed Neutral None

Number of Poles 3

Current Rating 30 A

Voltage Rating 600 V AC/DC

Enclosure Rating NEMA 1 steel

Standard Motor Power Rating 5 hp at 240 V AC 50-60 Hz for 1 phase motors

10 hp at 240 V AC 50-60 Hz for 3 phase motors

7.5 hp at 480 V AC 50-60 Hz for 1 phase motors

20 hp at 480 V AC 50-60 Hz for 3 phase motors

10 hp at 600 V AC 50-60 Hz for 1 phase motors

30 hp at 600 V AC 50-60 Hz for 3 phase motors

5 hp at 250 V DC

15 hp at 600 V DC

Safety switch, heavy duty, non

fusible, 30A, 3 wire, 3 pole, 30HP,

600V AC/DC, NEMA 1

HU361

Discontinued on: Jun 23, 2023

Discontinued

Product availability: Non-Stock - Not normally stocked in

distribution facility

Main

Complementary

Certifications UL listed file E2875

Mounting Type Surface

Electrical Connection Lugs

Wiring configuration 3-wire

Wire Size AWG 12...AWG 6 aluminium

AWG 14...AWG 6 copper

Tightening torque 45 lbf.in (5.08 N.m) 0.02 in² (13.3 mm²) (AWG 6)

40 lbf.in (4.5 N.m) 0.013 in² (8.367 mm²) (AWG 8)

35 lbf.in (4.0 N.m) 0.003…0.008 in² (2.06…5.261 mm²) (AWG 14...AWG 10)

Depth 4.87 in (123.70 mm)

Width 7.55 in (191.77 mm)

Height 14.6 in (370.8 mm)

Net Weight 8.8 lb(US) (4 kg)

Environment

Price is “List Price” and may be subject to a trade discount – check with your local distributor or retailer for actual price.

Sep 29, 2025 1

Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applicationsOrdering and shipping details

GTIN 785901505723

Returnability No

Packing Units

Unit Type of Package 1 Nbr. of units in pkg. 1

Package 1 Height Package 1 Width Package 1 Length Package weight(Lbs) Unit Type of Package 2 Number of Units in Package 2 Package 2 Height Package 2 Width Package 2 Length Package 2 Weight PCE

5.200 in (13.208 cm)

7.700 in (19.558 cm)

16.200 in (41.148 cm)

7.599 lb(US) (3.447 kg)

PAL

120

45.50 in (115.57 cm)

40.0 in (101.6 cm)

48.00 in (121.92 cm)

948.000 lb(US) (430.005 kg)
